MySql数据库表自动创建与删除分区

发表于 更新于 分类于

简述

数据库中表数据量太大时，查询速度变慢，而且在进行数据迁移时不方便。我们可以对数据量较大（超2GB）的表进行分区，以提高查询效率，方便数据维护。文章中示例了按时间对数据库表进行分区，并使用数据库存储过程与事件完成数据库表分区的自动创建与删除。

环境

  • 操作系统: Windows 7

  • 数据库：MySQL 5.7

  • 工具：Navicat for MySQL 10.1.7

数据库与表

  • 创建数据库(cma)并指定字符集(utf8)

    1
    CREATE DATABASE cma DEFAULT CHARSET utf8；

  • 创建表(meteorology_sensor)，指定引擎(InnoDB)

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    CREATE TABLE meteorology_sensor (
    	id BIGINT COMMENT '主键，自动生成' NOT NULL auto_increment,
    	collected_time TIMESTAMP COMMENT '数据采集时间',
    	component_id CHAR (17) COMMENT '被监测设备ID',
    	device_code CHAR (17) COMMENT '设备编号' NOT NULL,
    	device_id BIGINT COMMENT '设备Id',
    	protocol_version CHAR (5) COMMENT '数据上传时使用的版本号,值为：v2010、v2015',
    	send_state TINYINT (1) COMMENT '推送CAG状态，1 成功，0 未推送，-1 推送失败',
    	air_pressure DECIMAL (10, 1) COMMENT '气压，浮点数，精确到小数点后1位，单位：hPa',
    	air_temperature DECIMAL (10, 1) COMMENT '气温，浮点数，精确到小数点后1位，单位：℃',
    	alarm_flag SMALLINT COMMENT '报警标识，新协议没有这个字段',
    	average_wind_direction10min SMALLINT COMMENT '10分钟平均风向，无符号整数，单位：°',
    	average_wind_speed10min DECIMAL (10, 1) COMMENT '十分钟平均风速，浮点数，精确到小数点后1位，单位：m/s',
    	extreme_wind_speed DECIMAL (10, 1) COMMENT '极大风速，浮点数，精确到小数点后1位，单位：m/s',
    	humidity SMALLINT COMMENT '湿度，无符号整数，单位：%RH',
    	max_wind_speed DECIMAL (10, 1) COMMENT '最大大风速，浮点数，精确到小数点后1位，单位：m/s',
    	precipitation DECIMAL (10, 1) COMMENT '降雨量，浮点数，精确到小数点后1位，单位：mm',
    	precipitation_intensity DECIMAL (10, 1) COMMENT '降水强度，浮点数，精确到小数点后1位，单位：mm/min',
    	radiation_intensity SMALLINT COMMENT '光辐射强度，无符号整数，单位：W/m2',
    	second_time_stamp TIMESTAMP COMMENT '报文中的时间戳',
    	standard_wind_speed DECIMAL (10, 1) COMMENT '标准风速，浮点数，精确到小数点后1位，单位：m/s',
    	PRIMARY KEY (id)
    ) ENGINE = INNODB

注意：这里指定字符集和数据库引擎是因为项目中需要，跟分区没有关系，也可以不指定或使用其他的。

数据库表分区

添加主键

注意：分区字段必须是主键。 在这里，我们需要使用表中的时间字段(collected_time)进行分区，所以需要将其添加为主键，与原有主键(id)组成联合主键。

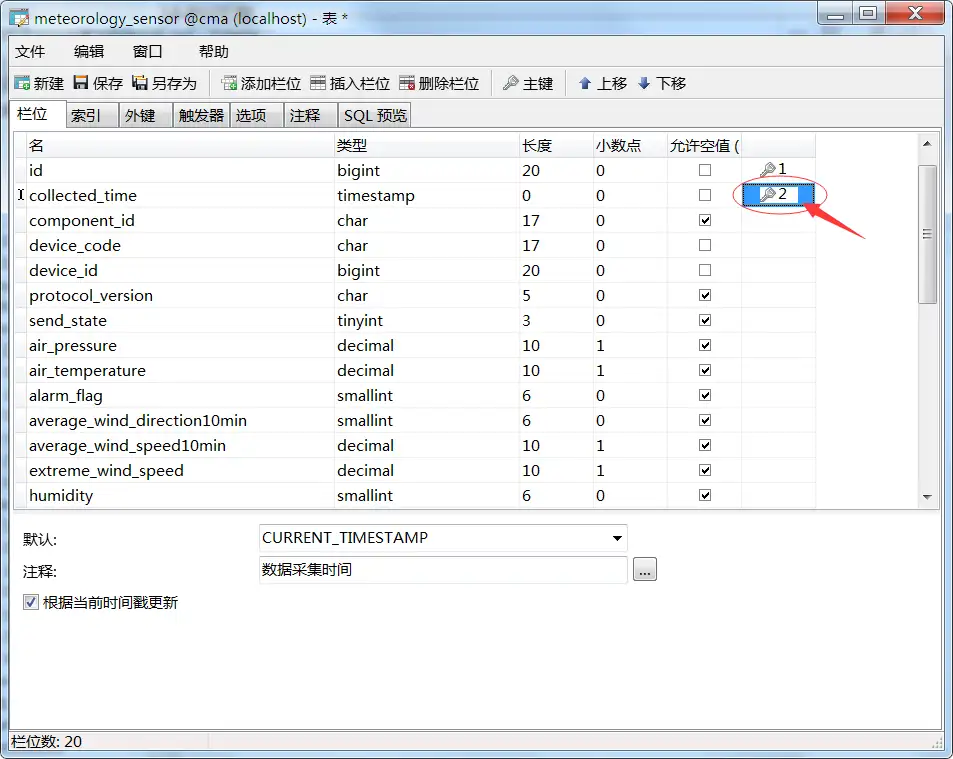

使用 Navicat 打开数据库，对表结构进行修改，将 collected_time 设置为主键。

或执行 SQL 语句修改表结构：

1
ALTER TABLE `meteorology_sensor` DROP PRIMARY KEY ,ADD PRIMARY KEY ( `id`,`collected_time`);

初始分区

按时间范围分区，每年按季度分区，每3个月为一个分区。分区的范围应该根据实际数据量来确定，如数据量较小，可以考虑加大分区的时间范围，防止分区文件过多。

注意：最后要建一个 less than (maxvalue) 的分区(p_future)，将超过设定分区时间的数据都放到这个分区里。

使用 Navicat 进行分区

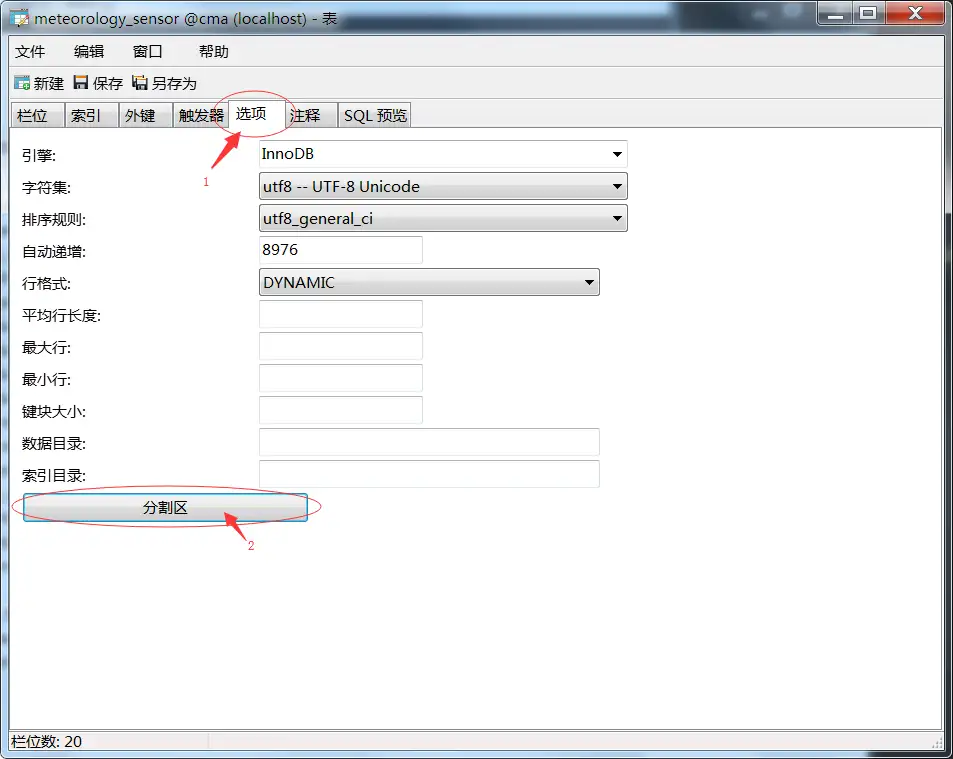

  1. 设计表 -> 选项 -> 分割区

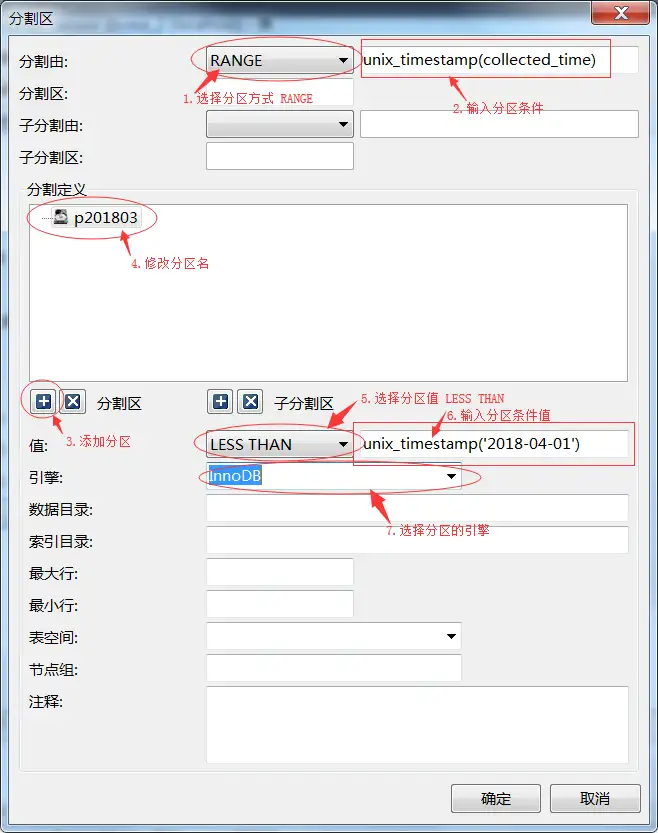

  1. 添加分区( less than )

  1. 添加最后一个分区( less than maxvalue)

  1. 确定分区后，点击确定回到设计表界面，点击 “保存” 完成分区。
使用 SQL 语句进行分区
1
2
3
4
5
6
7
8
9
ALTER TABLE cma.meteorology_sensor PARTITION by RANGE (UNIX_TIMESTAMP(collected_time))
(
PARTITION p201803 VALUES less than (UNIX_TIMESTAMP('2018-04-01')),
PARTITION p201806 VALUES less than (UNIX_TIMESTAMP('2018-07-01')),
PARTITION p201809 VALUES less than (UNIX_TIMESTAMP('2018-10-01')),
PARTITION p201812 VALUES less than (UNIX_TIMESTAMP('2019-01-01')),
PARTITION p201903 VALUES less than (UNIX_TIMESTAMP('2019-04-01')),
PARTITION p_future VALUES LESS THAN (MAXVALUE)
);

查看分区文件

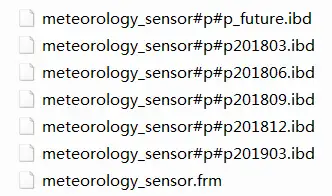

进入 MySQL 的数据存储目录下，查看数据库的文件，发现出现了如下的分区文件，说明初始分区正确：

创建新分区的存储过程

为了使用方便，在定义存储过程时，指定了 3 个参数，分别是：要进行分区的数据库名(p_schema)、要进行分区的表名(p_table)、要多添加的月数(p_months_to_add)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
-- 如果存储过程已经存在，将其删除
DROP PROCEDURE IF EXISTS cma.create_new_partitions;

-- 定义创建分区的存储过程
DELIMITER $$
CREATE PROCEDURE cma.create_new_partitions(p_schema varchar(64), p_table varchar(64), p_months_to_add int)
-- 参数：
-- p_schema: 数据库名
-- p_table: 表名
-- p_months_to_add: 要多添加的月数
   LANGUAGE SQL
   NOT DETERMINISTIC
   SQL SECURITY INVOKER
   comment '给指定数据库(p_schema)的指定数据表(p_table)创建分区，分区数为当前月加上随后(p_months_to_add)个月的'
BEGIN
   DECLARE done INT DEFAULT FALSE;
   DECLARE current_partition_name varchar(64);
   DECLARE current_partition_ts int;

   -- We'll use this cursor later to check
   -- whether a particular already exists.
   -- @partition_name_to_add will be
   -- set later.
   DECLARE cur1 CURSOR FOR
   SELECT partition_name
   FROM information_schema.partitions
   WHERE TABLE_SCHEMA = p_schema
   AND TABLE_NAME = p_table
   AND PARTITION_NAME != 'p_first'
   AND PARTITION_NAME != 'p_future'
   AND PARTITION_NAME = @partition_name_to_add;

   -- We'll also use this cursor later
   -- to query our temporary table.
   DECLARE cur2 CURSOR FOR
   SELECT partition_name, partition_range_ts
   FROM partitions_to_add;

   DECLARE CONTINUE HANDLER FOR NOT FOUND SET done = TRUE;

   DROP TEMPORARY TABLE IF EXISTS partitions_to_add;

   CREATE TEMPORARY TABLE partitions_to_add (
      partition_name varchar(64),
      partition_range_ts int
   );

   SET @partitions_added = FALSE;
   SET @months_ahead = 0;

   -- Let's go through a loop and add each month individually between
   -- the current month and the month p_months_to_add in the future.
   WHILE @months_ahead <= p_months_to_add DO
      -- We figure out what the correct month is by adding the
      -- number of months to the current date
      SET @date = CURDATE();
      SET @q = 'SELECT DATE_ADD(?, INTERVAL ? MONTH) INTO @month_to_add';
      PREPARE st FROM @q;
      EXECUTE st USING @date, @months_ahead;
      DEALLOCATE PREPARE st;
      SET @months_ahead = @months_ahead + 1;

      -- Then we format the month in the same format used
      -- in our partition names.
      SET @q = 'SELECT DATE_FORMAT(@month_to_add, ''%Y%m'') INTO @formatted_month_to_add';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      -- And then we use the formatted date to build the name of the
      -- partition that we want to add. This partition name is
      -- assigned to @partition_name_to_add, which is used in
      -- the cursor declared at the start of the procedure.
      SET @q = 'SELECT CONCAT(''p'', @formatted_month_to_add) INTO @partition_name_to_add';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      SET done = FALSE;
      SET @first = TRUE;

      -- And then we loop through the results returned by the cursor,
      -- and if a row already exists for the current partition,
      -- then we do not need to create the partition.
      OPEN cur1;

      read_loop: LOOP
         FETCH cur1 INTO current_partition_name;

         -- The cursor returned 0 rows, so we can create the partition.
         IF done AND @first THEN
            SELECT CONCAT('Creating partition: ', @partition_name_to_add);

            -- Now we need to get the end date of the new partition.
            -- Note that the date is for the non-inclusive end range,
            -- so we actually need the date of the first day of the *next* month.

            -- First, let's get a date variable for the first of the partition month
            SET @q = 'SELECT DATE_FORMAT(@month_to_add, ''%Y-%m-01 00:00:00'') INTO @month_to_add';
            PREPARE st FROM @q;
            EXECUTE st;
            DEALLOCATE PREPARE st;

            -- Then, let's add 1 month
            SET @q = 'SELECT DATE_ADD(?, INTERVAL 1 MONTH) INTO @partition_end_date';
            PREPARE st FROM @q;
            EXECUTE st USING @month_to_add;
            DEALLOCATE PREPARE st;

            -- We need the date in UNIX timestamp format.
            SELECT UNIX_TIMESTAMP(@partition_end_date) INTO @partition_end_ts;

            -- Now insert the information into our temporary table
            INSERT INTO partitions_to_add VALUES (@partition_name_to_add, @partition_end_ts);
            SET @partitions_added = TRUE;
         END IF;

         -- Since we had at least one row returned, we know the
         -- partition already exists.
         IF ! @first THEN
            LEAVE read_loop;
         END IF;

         SET @first = FALSE;
      END LOOP;

     CLOSE cur1;
   END WHILE;

   -- Let's actually add the partitions now.
   IF @partitions_added THEN
      -- First we need to build the actual ALTER TABLE query.
      SET @schema = p_schema;
      SET @table = p_table;
      SET @q = 'SELECT CONCAT(''ALTER TABLE '', @schema, ''.'', @table, '' REORGANIZE PARTITION p_future INTO ( '') INTO @query';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      SET done = FALSE;
      SET @first = TRUE;

      OPEN cur2;

      read_loop: LOOP
         FETCH cur2 INTO current_partition_name, current_partition_ts;

        IF done THEN
            LEAVE read_loop;
         END IF;

         -- If it is not the first partition,
         -- then we need to add a comma
         IF ! @first THEN
            SET @q = 'SELECT CONCAT(@query, '', '') INTO @query';
            PREPARE st FROM @q;
            EXECUTE st;
            DEALLOCATE PREPARE st;
         END IF;

         -- Add the current partition
         SET @partition_name =  current_partition_name;
         SET @partition_ts =  current_partition_ts;
         SET @q = 'SELECT CONCAT(@query, ''PARTITION '', @partition_name, '' VALUES LESS THAN ('', @partition_ts, '')'') INTO @query';
         PREPARE st FROM @q;
         EXECUTE st;
         DEALLOCATE PREPARE st;

         SET @first = FALSE;
      END LOOP;

      CLOSE cur2;

      -- We also need to include the p_future partition
      SET @q = 'SELECT CONCAT(@query, '', PARTITION p_future VALUES LESS THAN (MAXVALUE))'') INTO @query';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      -- And then we prepare and execute the ALTER TABLE query.
      PREPARE st FROM @query;
      EXECUTE st;
      DEALLOCATE PREPARE st;
   END IF;

   DROP TEMPORARY TABLE partitions_to_add;
END$$
DELIMITER ;

创建删除分区存储过程

同样的，为了使用方便，在定义删除分区的存储过程时也指定了几个参数，分别是：数据库名(p_schema)、表名(p_table)、保留的分区数(p_months_to_keep)、删除分区等待时间(p_seconds_to_sleep)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
-- 如果存储过程已经存在，将其删除
DROP PROCEDURE IF EXISTS cma.drop_old_partitions;

-- 定义删除分区的存储过程
DELIMITER $$
CREATE PROCEDURE cma.drop_old_partitions(p_schema varchar(64), p_table varchar(64), p_months_to_keep int, p_seconds_to_sleep int)
-- 参数：
-- p_schema: 数据库名
-- p_table: 数据库表名
-- p_months_to_keep: 保留的分区数
-- p_seconds_to_sleep: 删除分区时等待时间，单位：秒
   LANGUAGE SQL
   NOT DETERMINISTIC
   SQL SECURITY INVOKER
   comment '删除指定数据库(p_schema)的指定数据表(p_table)的老分区，保留的分区数为(p_months_to_keep) +1 个，每次删除分区时会等待(p_seconds_to_sleep)秒'
BEGIN
   DECLARE done INT DEFAULT FALSE;
   DECLARE current_partition_name varchar(64);

   -- We'll use this cursor later to get
   -- the list of partitions to drop.
   -- @last_partition_name_to_keep will be
   -- set later.
   DECLARE cur1 CURSOR FOR
   SELECT partition_name
   FROM information_schema.partitions
   WHERE TABLE_SCHEMA = p_schema
   AND TABLE_NAME = p_table
   AND PARTITION_NAME != 'p_first'
   AND PARTITION_NAME != 'p_future'
   AND PARTITION_NAME < @last_partition_name_to_keep;

   DECLARE CONTINUE HANDLER FOR NOT FOUND SET done = TRUE;

   -- Now we get the last month of data that we want to keep
   -- by subtracting p_months_to_keep from the current date.
   -- Note that it will actually keep p_months_to_keep+1 partitions,
   -- since the current month is not complete.
   SET @date = CURDATE();
   SET @months_to_keep = p_months_to_keep;
   SET @q = 'SELECT DATE_SUB(?, INTERVAL ? MONTH) INTO @last_month_to_keep';
   PREPARE st FROM @q;
   EXECUTE st USING @date, @months_to_keep;
   DEALLOCATE PREPARE st;

   -- Then we format the last month in the same format used
   -- in our partition names.
   SET @q = 'SELECT DATE_FORMAT(@last_month_to_keep, ''%Y%m'') INTO @formatted_last_month_to_keep';
   PREPARE st FROM @q;
   EXECUTE st;
   DEALLOCATE PREPARE st;

   -- And then we use the formatted date to build the name of the
   -- last partition that we want to keep. This partition name is
   -- assigned to @last_partition_name_to_keep, which is used in
   -- the cursor declared at the start of the procedure.
   SET @q = 'SELECT CONCAT(''p'', @formatted_last_month_to_keep) INTO @last_partition_name_to_keep';
   PREPARE st FROM @q;
   EXECUTE st;
   DEALLOCATE PREPARE st;

   SELECT CONCAT('Dropping all partitions before: ', @last_partition_name_to_keep);

   SET @first = TRUE;

   -- And then we loop through all partitions returned by the cursor,
   -- and those partitions are dropped.
   OPEN cur1;

   read_loop: LOOP
      FETCH cur1 INTO current_partition_name;

      IF done THEN
         LEAVE read_loop;
      END IF;

      IF ! @first AND p_seconds_to_sleep > 0 THEN
         SELECT CONCAT('Sleeping for ', p_seconds_to_sleep, ' seconds');
         SELECT SLEEP(p_seconds_to_sleep);
      END IF;

      SELECT CONCAT('Dropping partition: ', current_partition_name);

      -- First we build the ALTER TABLE query.
      SET @schema = p_schema;
      SET @table = p_table;
      SET @partition = current_partition_name;
      SET @q = 'SELECT CONCAT(''ALTER TABLE '', @schema, ''.'', @table, '' DROP PARTITION '', @partition) INTO @query';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      -- And then we prepare and execute the ALTER TABLE query.
      PREPARE st FROM @query;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      SET @first = FALSE;
   END LOOP;

   CLOSE cur1;

   -- If no partitions were dropped, then we can also skip this.
   IF ! @first THEN
      -- Then we need to get the date of the new first partition.
      -- We need the date in UNIX timestamp format.
      SET @q = 'SELECT DATE_FORMAT(@last_month_to_keep, ''%Y-%m-01 00:00:00'') INTO @new_first_partition_date';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;
      SELECT UNIX_TIMESTAMP(@new_first_partition_date) INTO @new_first_partition_ts;

      -- We also need to get the date of the second partition
      -- since the second partition is also needed for REORGANIZE PARTITION.
      SET @q = 'SELECT DATE_ADD(@new_first_partition_date, INTERVAL 1 MONTH) INTO @second_partition_date';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;
      SELECT UNIX_TIMESTAMP(@second_partition_date) INTO @second_partition_ts;

      SELECT CONCAT('Reorganizing first and second partitions. first partition date = ', @new_first_partition_date, ', second partition date = ', @second_partition_date);

      -- Then we build the ALTER TABLE query.
      SET @schema = p_schema;
      SET @table = p_table;
      SET @q = 'SELECT CONCAT(''ALTER TABLE '', @schema, ''.'', @table, '' REORGANIZE PARTITION p_first, '', @last_partition_name_to_keep, '' INTO ( PARTITION p_first VALUES LESS THAN ( '', @new_first_partition_ts, '' ), PARTITION '', @last_partition_name_to_keep, '' VALUES LESS THAN ( '', @second_partition_ts, '' ) ) '') INTO @query';
      PREPARE st FROM @q;
      EXECUTE st;
      DEALLOCATE PREPARE st;

      -- And then we prepare and execute the ALTER TABLE query.
      PREPARE st FROM @query;
      EXECUTE st;
      DEALLOCATE PREPARE st;
   END IF;
END$$
DELIMITER ;

创建删除老分区并创建新分区的存储过程

为了能够实现自动的删除老分区和创建新分区，定义一个存储过程，调用上面定义的两个存储过程，传入上面两个存储过程需要的参数：数据库名(p_schema)、表名(p_table)、要多添加的月数(p_months_to_add)、保留的分区数(p_months_to_keep)、删除分区等待时间(p_seconds_to_sleep)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
-- 如果存储过程已经存在，将其删除
DROP PROCEDURE IF EXISTS cma.perform_partition_maintenance;

-- 定义删除老分区并创建新分区的存储过程
DELIMITER $$
CREATE PROCEDURE cma.perform_partition_maintenance(p_schema varchar(64), p_table varchar(64), p_months_to_add int, p_months_to_keep int, p_seconds_to_sleep int)
	-- 先删除老的分区，再生成新的分区
	-- 参数：p_chema: 数据库名；
	-- p_table: 数据表名；
	-- p_months_to_add: 创建分区时，添加的分区数量，例如：当值为0时，只会创建当前月的分区，当值为2时，会创建当前月和后2个月的分区；
	-- p_months_to_keep: 删除分区时， 保留的分区数量，保留的分区数会多1，例如：当值为3时，会保留4个分区；
	-- p_seconds_to_sleep: 删除分区时，等待删除的时间，单位：秒；
   LANGUAGE SQL
   NOT DETERMINISTIC
   SQL SECURITY INVOKER
   comment '指定数据库(p_schema)的指定数据表(p_table)，先删除老分区，再创建新分区，删除时保留的分区数为(p_months_to_keep) +1 个，每次删除分区时会等待(p_seconds_to_sleep)秒，创建的新分区数为当前月加上随后(p_months_to_add)个月的'
BEGIN
   CALL cma.drop_old_partitions(p_schema, p_table, p_months_to_keep, p_seconds_to_sleep);
   CALL cma.create_new_partitions(p_schema, p_table, p_months_to_add);
END$$
DELIMITER ;

创建定时执行的事件

创建定时事件：从现在时间开始，每隔一个月触发一次，将调用上面写的存储过程，完成自动删除老的分区，创建新的分区，修改事件中调用存储过程的参数，即可完成对其他表的自动分区管理。

1
2
3
4
5
6
7
8
9
10
11
-- 如果事件已经存在，将其删除
DROP EVENT if EXISTS cma.monthly_event_meteorology_sensor;

-- 创建定时事件：从现在时间开始，每隔一个月触发一次，将调用上面写的存储过程，完成自动删除老的分区，创建新的分区
CREATE EVENT cma.monthly_event_meteorology_sensor
   ON SCHEDULE
   EVERY 1 MONTH
   STARTS NOW()
COMMENT '微气象数据，从现在开始，每月定时删除分区、创建新分区'
DO
   CALL cma.perform_partition_maintenance('cma', 'meteorology_sensor', 3, 6, 5);

扩展

MySQL 中其它分区方式

在上面的示例中，我们按字段值的范围(RANGE)进行分区，在 MySQL 中还提供的分区方式：

  • 范围分区(RANGE): 按连续的区间范围把数据分到不同分区中，要求分区范围不能重叠，而且必须连续，常见的有按时间、自增的id进行分区。

  • 列表分区(LIST): 按枚举出的值进行分区，如按地理位置不同将数据分到不同区，东北、华北、华南…。

  • 散列分区(HASH): 基于给定的分区数，通过用户定义的计算后，将数据分到不同分区。这个函数可以包含MySQL 中有效的、产生非负整数值的任何表达式。

  • 键分区(KEY): 类似 HASH 分区，区别在于 KEY 分区只支持一列或多列，且MySQL服务器提供其自身的哈希函数。必须有一列或多列包含整数值。

  • 线性散列分区(LINEAR_HASH): 与常规哈希的区别在于，线性哈希功能使用的一个线性的2的幂（powers-of-two）运算法则，而常规哈希使用的是求哈希函数值的模数

  • 线性键(LINEAR_KEY): 与常规 KEY 的区别也是使用的一个线性的2的幂（powers-of-two）运算法则。

注意事项

  • 作为分区的字段需要设置为外键，否则无法分区。

  • 被分区的表中不能有外键，否则无法分区，分区时 mysql 会报 1506 错误。

  • 当使用 range 方式分区且最后一个分区为 less than maxvalue 时，手动添加新分区时，不能直接添加，会报 1481 错误(MAXVALUE can only be used in last partition definition)，需要将 future 分区分割成两个分区，可执行如下 sql 语句：

    1
    2
    3
    4
    5
    -- 将 battery_state 表中 future 分区重新划分，得到两个分区：p201906、future
    ALTER TABLE battery_state REORGANIZE PARTITION future INTO(
    PARTITION p201906 VALUES less than (UNIX_TIMESTAMP('2019-07-01')) ENGINE = InnoDB,
    PARTITION future VALUES less than MAXVALUE ENGINE = InnoDB
    );

  • 如果想要合并两个分区，可以使用如下 SQL：

    1
    2
    3
    4
    -- 合并最后一个分区和 future 分区
    ALTER TABLE battery_state REORGANIZE PARTITION p202112,future INTO (PARTITION future VALUES less than MAXVALUE);
    -- 合并两个分区,注意最后面使用函数获得时间戳的地方要用括号括起来，否则会报错
    ALTER TABLE battery_state REORGANIZE PARTITION p202102,p202104 INTO (PARTITION p202104 VALUES less than (UNIX_TIMESTAMP('2021-05-01')));

参考资料

总结

最后，由于作者水平有限，文章中内容如有疏漏或错误之处，还请各位读者不吝指正！
